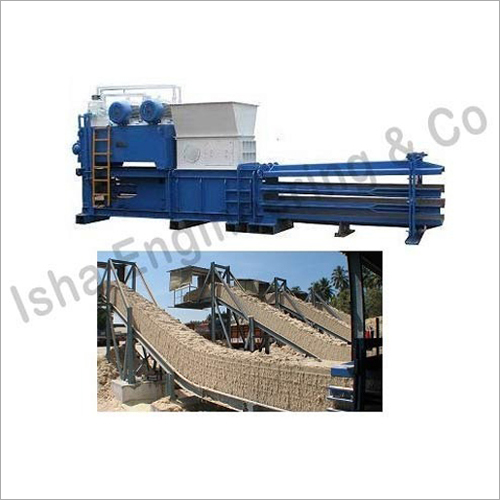

Fully Automatic Bagasse Compactor is made in our state of the art production division with the help of cutting-edge tools and techniques. The compactor has got rugged construction and the capability of withstanding impacts and heavy loads. It is equipped with the top of the line machine components and tools, which are responsible for its longevity and high operational reliability. The Fully Automatic Bagasse Compactor is an advanced industry-specific product. Our customers can approach us to purchase the compactor at a cost-effective price.
Specification
Model No | IS-D- 10 | IS-D- 15 | IS-S- 30 |
Type | Two station | Two station | Single station |
Capacity | 8-10 Tons/hr. | Tons/hr. | 30 Tons/hr. |
Bale size | 300 x 300 x 600 mm | 300 x 300 x 600 mm | 762 x 762 x 150-300 mm |
Bale weight | 22 -25 Kgs. (approx) | 22 -25 Kgs. (approx) | 110 Kgs. (approx) |
No of strokes | 22 - 24 strokes/min. | 30 - 32 strokes/min. | 275 strokes/min. |
Power | 40 HP-1440 rpm 3 ph | 50 HP-1440 rpm 3 ph | 50HP+1 stand by 1440 rpm 3ph |
Controls | By Electric Panel with digital temperature control system | - |
|
